BWT Protector Mini CR 1/2" water filter 810523
The BWT Protector Mini C/R 1/2" – 810523 is a compact mechanical filter for cold water installations. Its 100 µm stainless steel filter element helps protect the entire service water system from operational problems and corrosion damage caused by impurities such as rust, metal particles, sand and sealing material residues.
The BWT Protector Mini C/R 1/2" water filter – 810523 is designed for the mechanical filtration of cold water and for protecting downstream pipework and connected equipment from solid contaminants.
The filter uses a 100 µm stainless steel filter element to retain impurities such as rust, metal particles, sand and sealing material residues before they can enter the water installation. This helps reduce the risk of malfunctions and corrosion-related damage within the system.

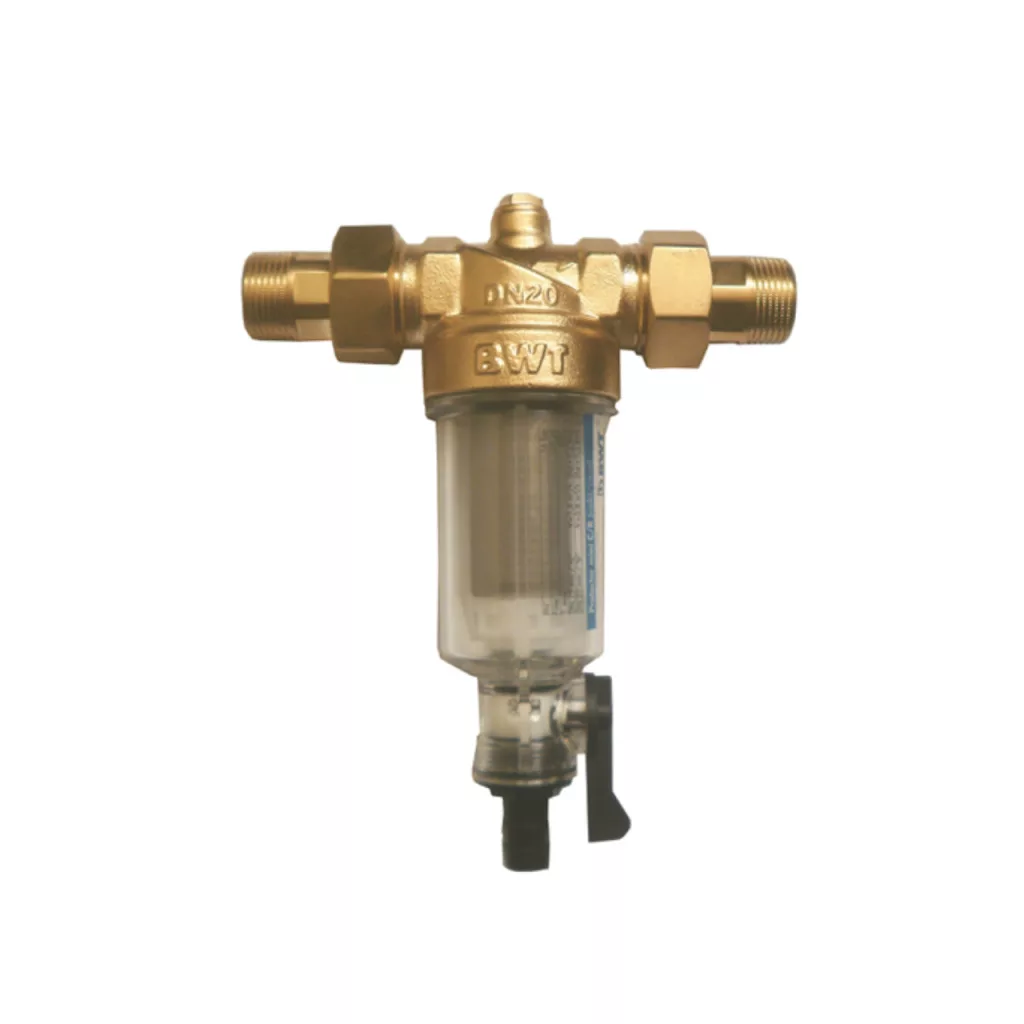

The C/R version is intended for cold water applications and features a plastic filter bowl, a brass filter head, two union connections and an integrated flushing valve for maintenance.
Main technical data:
- Brand: BWT
- Model: Protector Mini C/R 1/2"
- Article number: 810523
- Application: cold water filtration
- Nominal connection size: DN15
- Filtration rating: 100 µm
- Flow rate at Δp = 0.2 bar: 1.6 m³/h
- Nominal pressure: PN16
- Operating pressure: 1.5–16 bar
- Water temperature: 5–30 °C
- Ambient temperature: 5–40 °C
- Connection A: G 1/2"
- Connection B: G 3/4"
- Installation length C: 80 mm
- Height D: 164 mm
- Installation length E: 133 mm
- Height F: 194 mm
Construction:
- Brass filter head with 1/4" pressure gauge connection
- Internal and external threaded connections
- Plastic C/R filter bowl
- Stainless steel filter element
- 2 union connections
- Flushing valve
